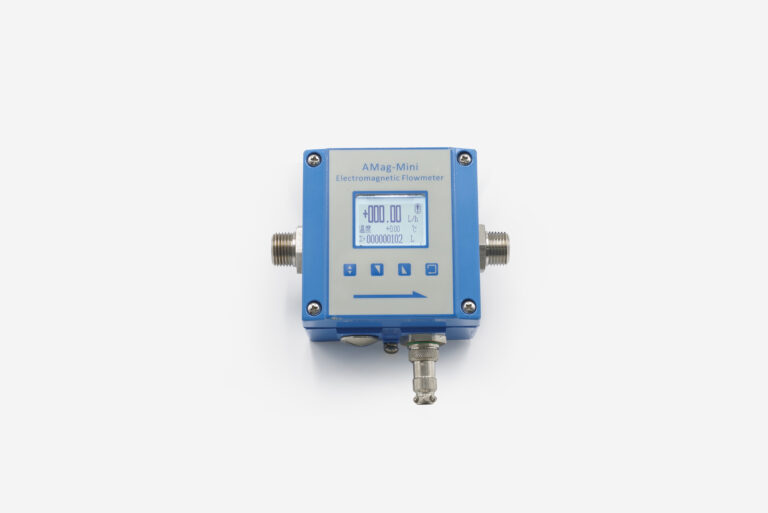

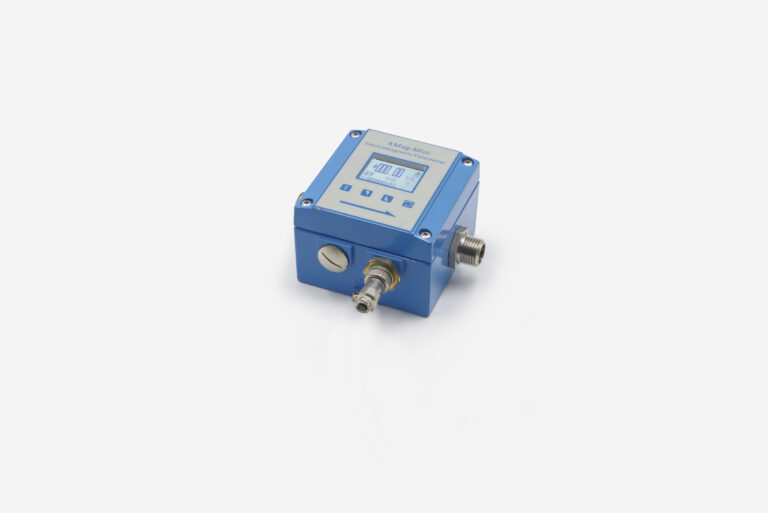

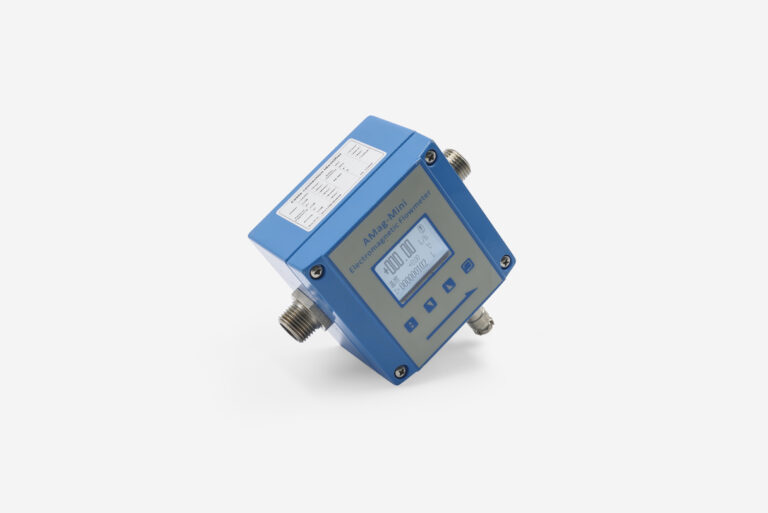

1. Product Overview
The Mini Electromagnetic Flowmeter is a compact and cost-effective solution designed for precise measurement of ultra-low flow rates. With nominal diameters ranging from DN3 to DN20, it is suitable for applications requiring high accuracy in small pipelines. Typical industries include chemical processing, food & beverage, pharmaceuticals, environmental protection, and water treatment.
This flowmeter supports bi-directional measurement, features no moving parts, and offers long-term stability with minimal maintenance.
2. Key Advantages
Ultra-Low Flow Capability: Stable measurement even at flow rates as low as 2–5 L/h.
No Moving Parts: Eliminates wear, extending service life and reducing maintenance costs.
Compact Size: Perfect for small pipelines and limited installation spaces.
Versatile Outputs: Compatible with PLC/DCS systems via 4–20 mA, pulse, or MODBUS communication.
Hygienic Design: PEEK liner and EPDM seals available for food-grade applications.
Energy Saving: Low power consumption <150 mA at 24 VDC.
3. Technical Specifications (Table Format)
| Parameter | Specification |
|---|---|
| Nominal Diameter | DN3 ~ DN20 (others on request) |
| Flow Range | 0.3 – 10 m/s |
| Accuracy | ±0.5%R ~ ±1.0%R |
| Minimum Flow | 2–5 L/h (depending on size) |
| Electrode Material | 316L, Hastelloy B/C, Titanium |
| Lining Material | PEEK (optional EPDM seals) |
| Nominal Pressure | 0.6 – 1.6 MPa |
| Protection Grade | IP65 / IP67 (blind version) |
| Process Connection | G/NPT threads, optional flanged |
| Output Signals | 4–20 mA, Pulse/Frequency, RS485 (MODBUS) |
| Power Supply | 24 VDC ±20% (19.2–28.8 V) |
| Ambient Temperature | -10℃ ~ 60℃ |
| Medium Temperature | -10℃ ~ 100℃ |
4. Installation Guidelines
Install horizontally with electrodes aligned in the horizontal plane.
For vertical installation, flow direction should be upward to avoid air accumulation.
Avoid locations with strong vibrations; use flexible couplings if necessary.
Ensure upstream and downstream straight pipe runs are met (typically 10D upstream, 5D downstream).
Do not install on the suction side of a pump to prevent negative pressure damage.
5. Electrical Connections
Power: 24 VDC
4–20 mA output for analog integration
Pulse output for totalizing applications
RS485 MODBUS RTU for digital communication
6. Typical Applications
Chemical Dosing Systems – low-volume, high-precision flow monitoring
Pharmaceutical Industry – small-batch production with hygienic requirements
Food & Beverage – flavoring, additive dosing, and CIP cleaning monitoring
Environmental Monitoring – sampling, wastewater, and lab testing
Cooling & Utility Lines – accurate measurement in auxiliary systems
7. Ordering Information
When placing an order, please specify:
Nominal diameter (DN3, DN6, DN12, etc.)
Process connection type (G-thread, NPT, or flange)
Electrode material (316L, Hastelloy, Titanium)
Liner material (PEEK or others)
Output signal required (4–20 mA, pulse, RS485)
With or without display
Operating medium and temperature range
